Intraoral Scanner IS 200

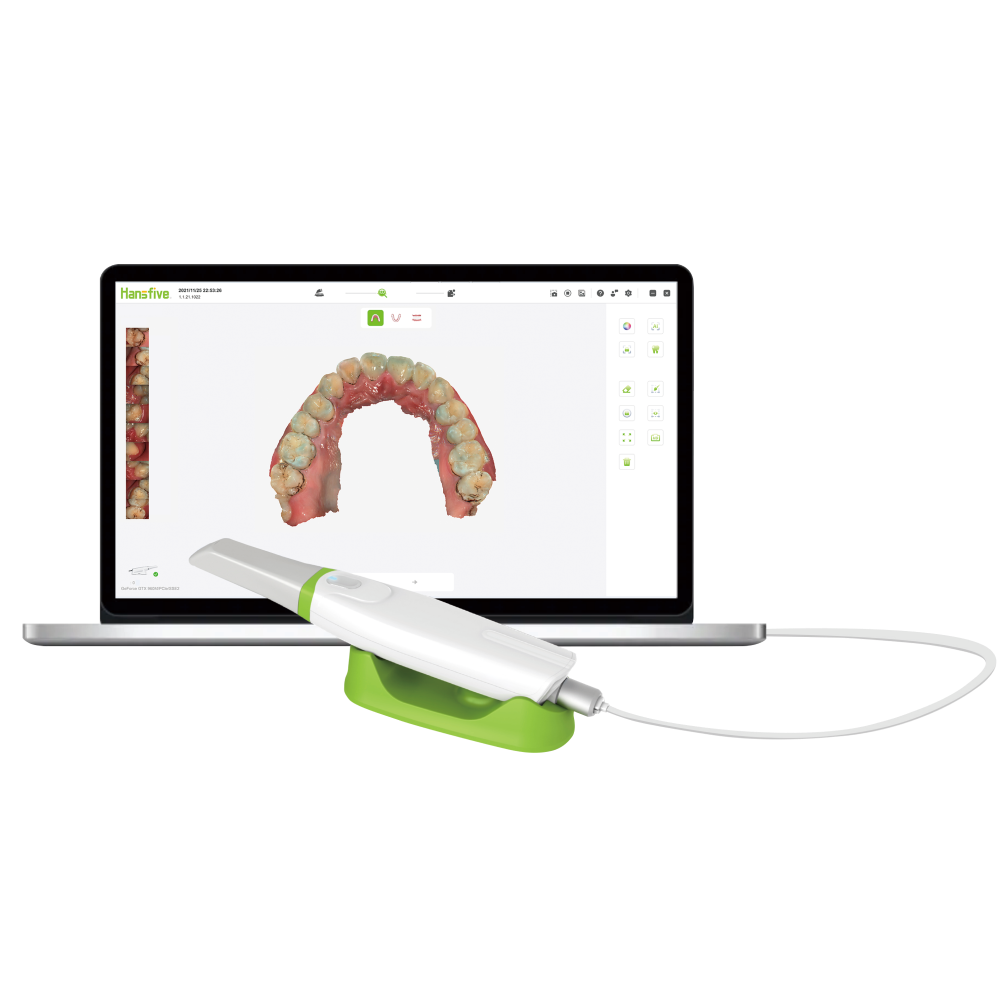

Intraoral scanner IS 200
Light, Anti-fogging, Fast, Convenient
watch video
  • Ergonomical design
    Only 225g in weight, easy to handle.
  • Anti-fogging
    Rapid heating, stable temperature
  • Fast scanning
    Scanning speed 80mm/s, full arch in 90s.
  • Easy operation
    Simple and intuitive user interface, with support for remote
    control using the handpiece.
Get a Quote

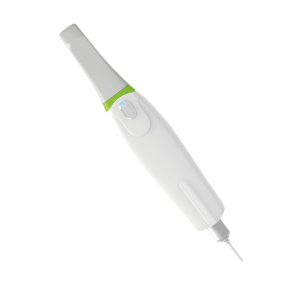

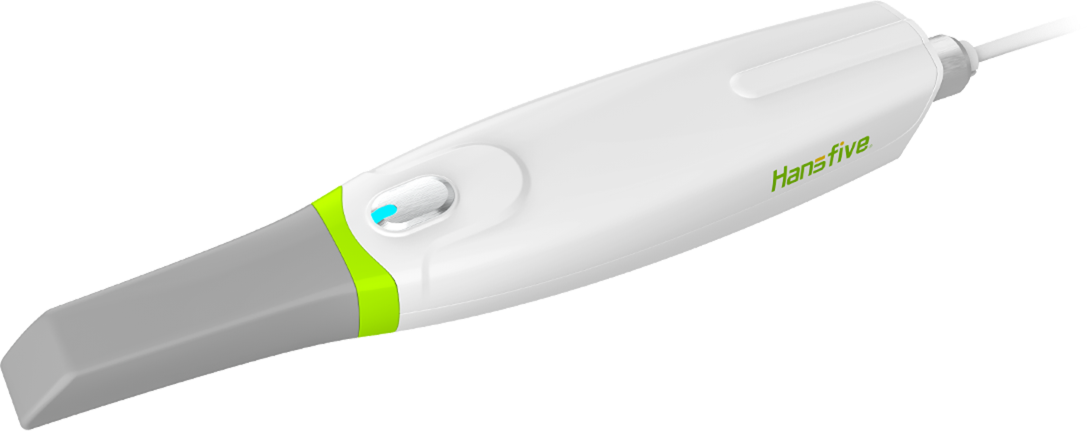

Intraoral scanner IS 200
  • Small tip
    Easy access to the posterior region
    for patients with small oral cavity.
    Autoclavable(100 times).
  • Intelligent remote control
    The scanning mode can be selected
    by the button on the handpiece.

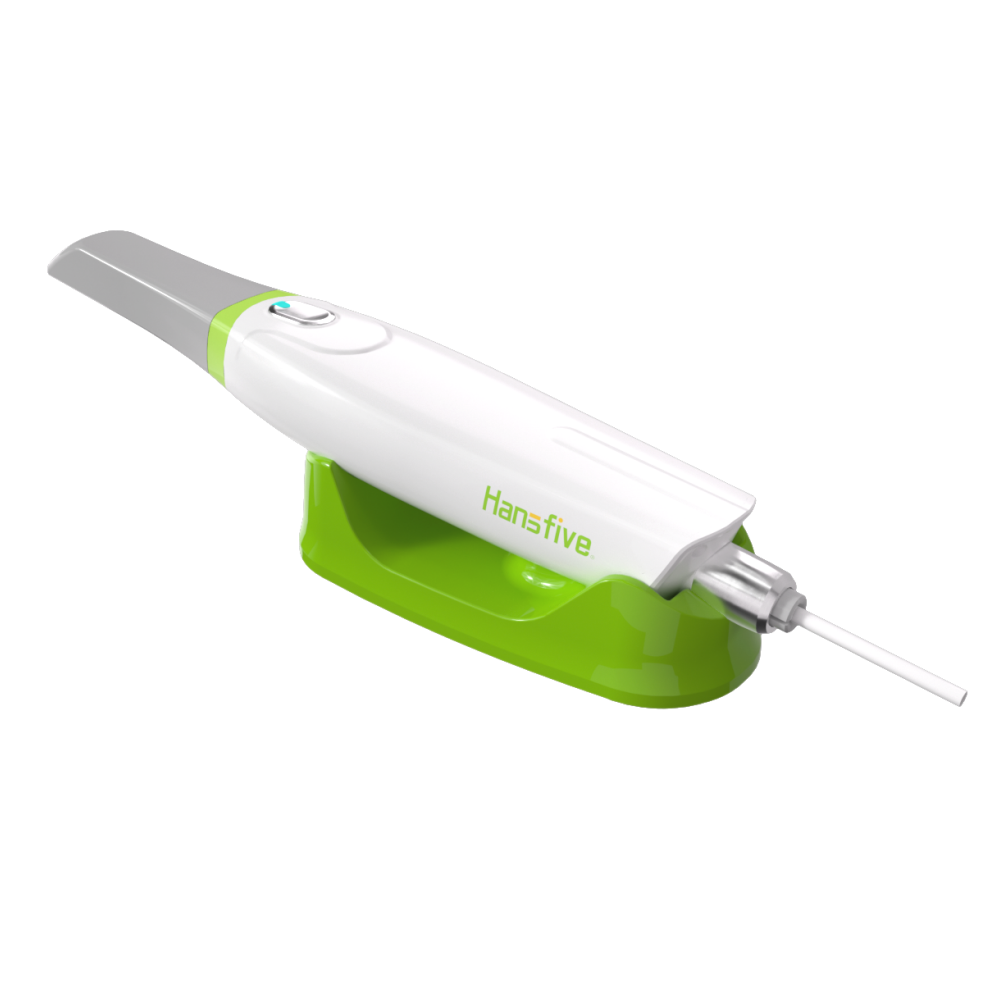

  • Segmented design
    The handpiece features a
    segmented design, allowing the
    cable to be disassembled for easy
    replacement and maintenance.

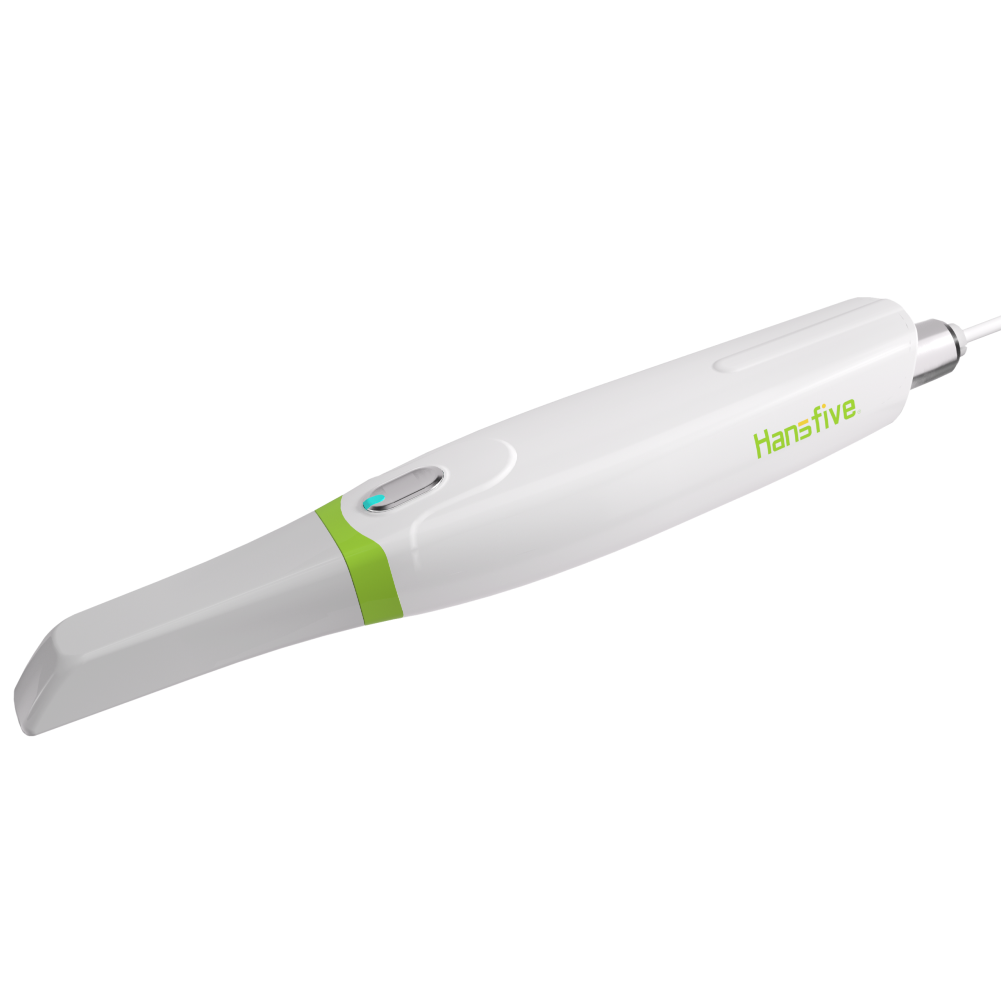

  • Light
    Ergonomically designed, and the net
    weight of the handpiece is only
    225g, which relieves operator
    fatigue.

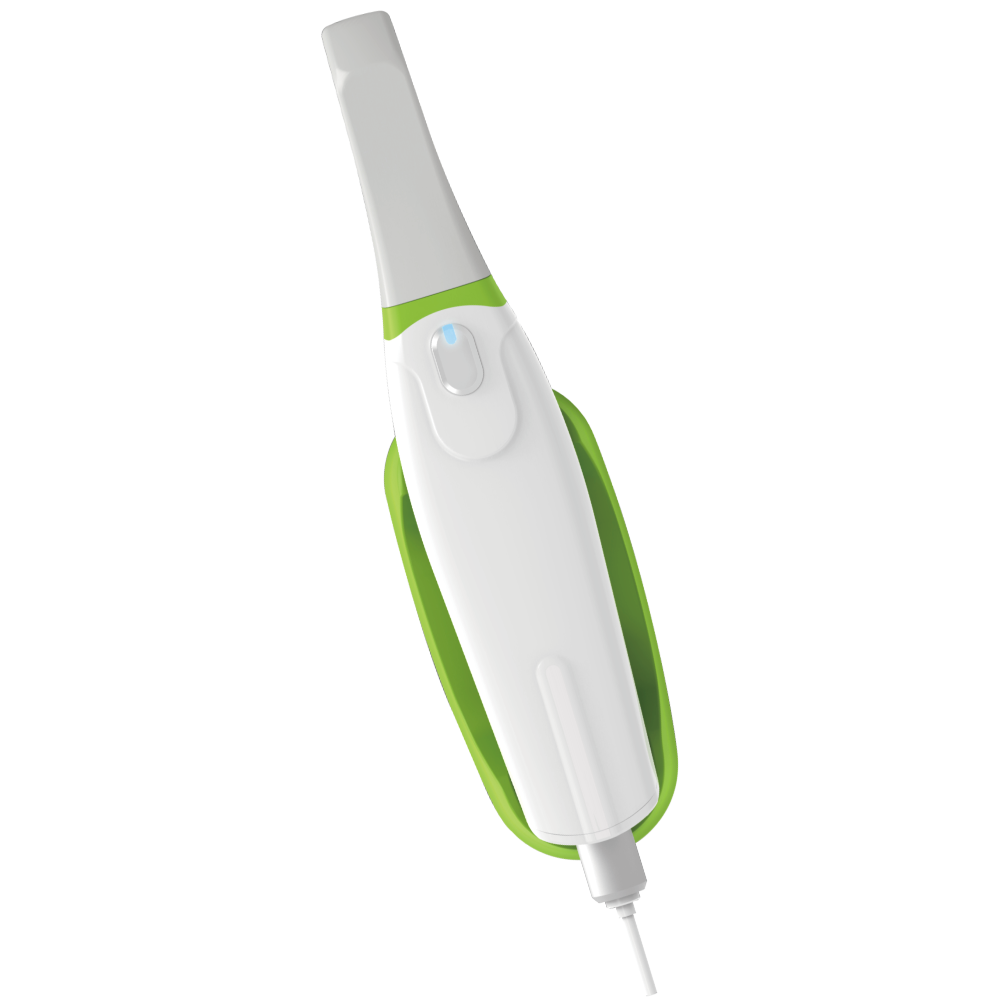

  • Anti-fogging
    Adopted an internal heating design
    for rapid heating and stable
    temperature, preventing the lens of
    the scanning head from fogging.

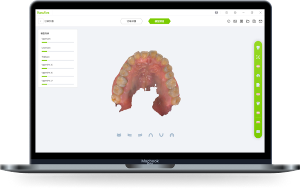

Software Interface

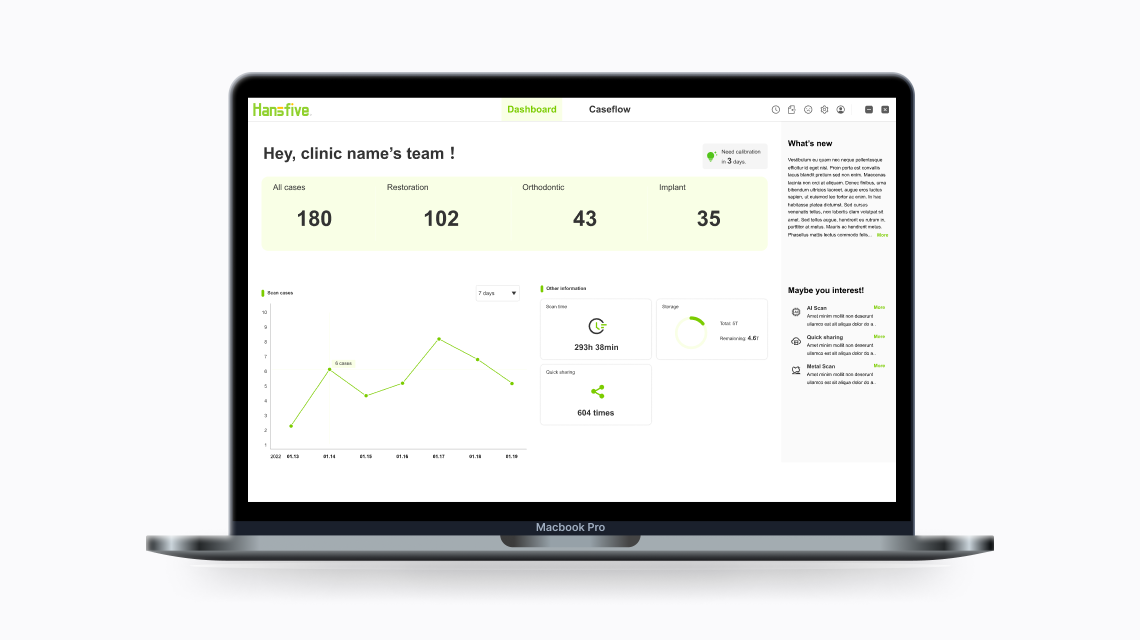

  • Dashboard
  • Caseflow

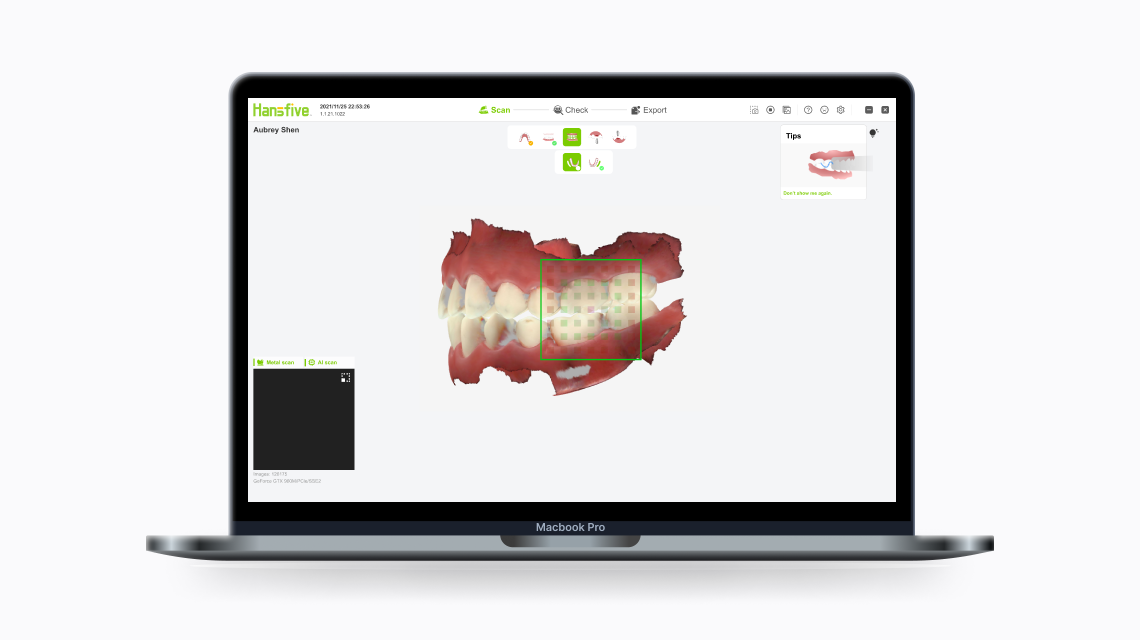

  • Scanning bite
  • Case info

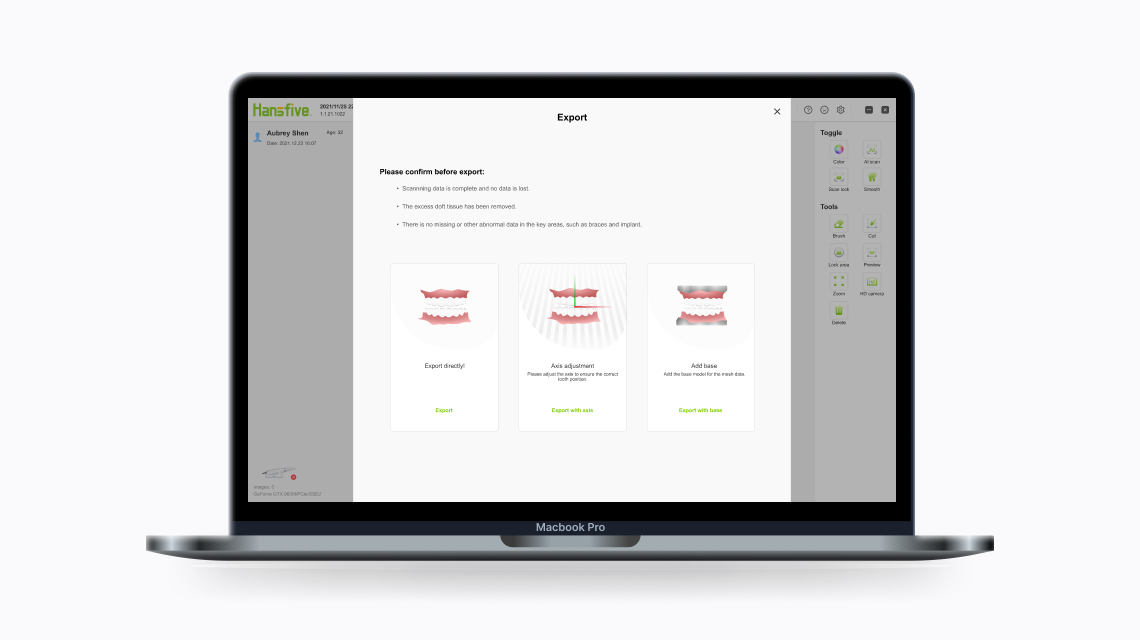

  • The default
Wide range of application

The IS 200 can be used in a variety of clinical indications, including restoration, orthodontics, and implantology.

  • Orthodontics
  • All-on-6 implant
  • Veneer
  • Pediatric dental care
  • 6-unit bridge
  • Inlay-onlay

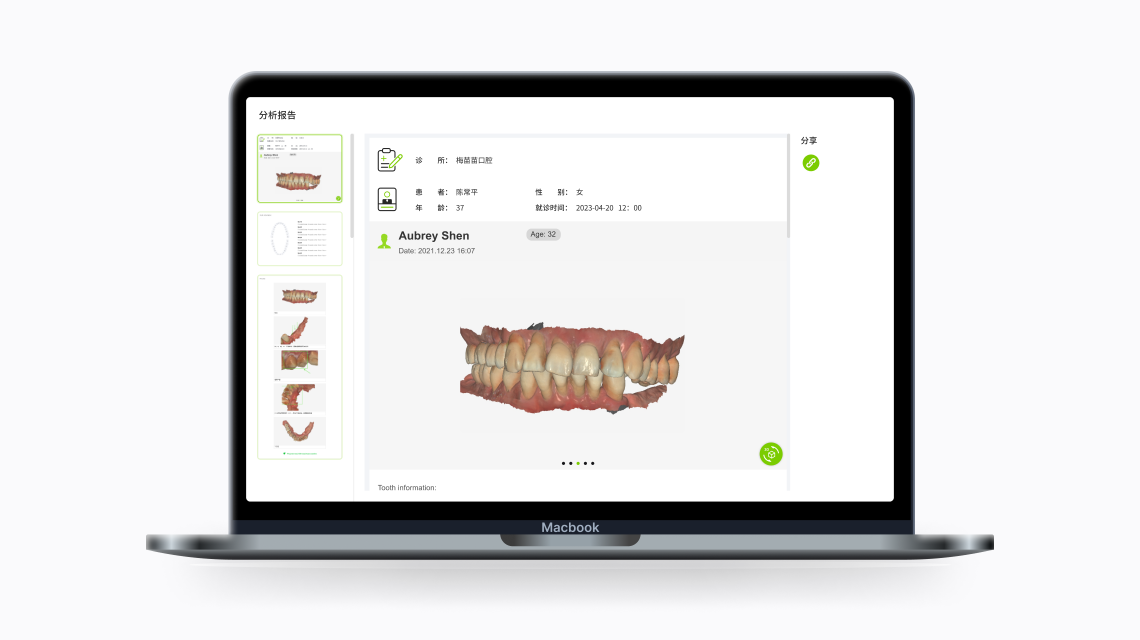

Oral health report

After scanning and obtaining intraoral data, the IS 200 can automatically identify lesions such as cavities, dental calculus, and dental plaque.

It generates a health report with a single click, enabling the timely detection of oral health issues for effective communication between the dentist and the patient,

facilitating intervention and treatment.

Open Data

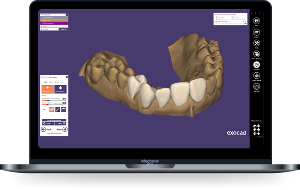

The IS 200 supports the import and export of data in STL, OBJ, PLY formats, and is compatible with mainstream design software such as 3Shape and Exocad.

The combination of the IS 200 intraoral scanner and Hansfive 3D printer, pressure forming device and milling machine forms a perfect Hansfive CAD/CAM ecosystem.

  • Scan
    data
  • Cloud
    data
  • Design
    software
  • 3D printer
    Digital surgical guide
  • Pressure forming device
    Digital orthodontics
  • Milling Machine
    Aesthetic restoration
Parameter Information
Technical Specifications
  • Model Name
    IS 200
  • Depth of Field
    0-15mm
  • Scan Field
    Standard scanner tip : 14mm * 14mm * 15mm
  • Mini scanner tip : 12mm * 10mm * 15mm
  • Quick Reset
    Yes
  • Model
    Optimization
    Yes
  • Output Format
    STL，OBJ，PLY
  • Handpiece
    Dimensions
    240mm * 49.5mm * 30.5mm
  • Weight
    225g
  • Connection
    USB 3.0
  • Mains Voltage
    AC 100-240V，50-60Hz
PC Requirements
  • CPU
    Intel Core i7-8750H or above
  • Desktop PC : Intel i7-8700 quad-core or above
  • Laptop : Intel i7-8750H or above
  • RAM
    DDR4 16GB or above
  • Graphics Card
    NVIDA GeForce 1660 GT or above
  • Video Memory
    6GB or above
  • OS
    Microsoft Windows® 10 Professional 64bit or above
